LS-PSU-12V24V-96W-5in1

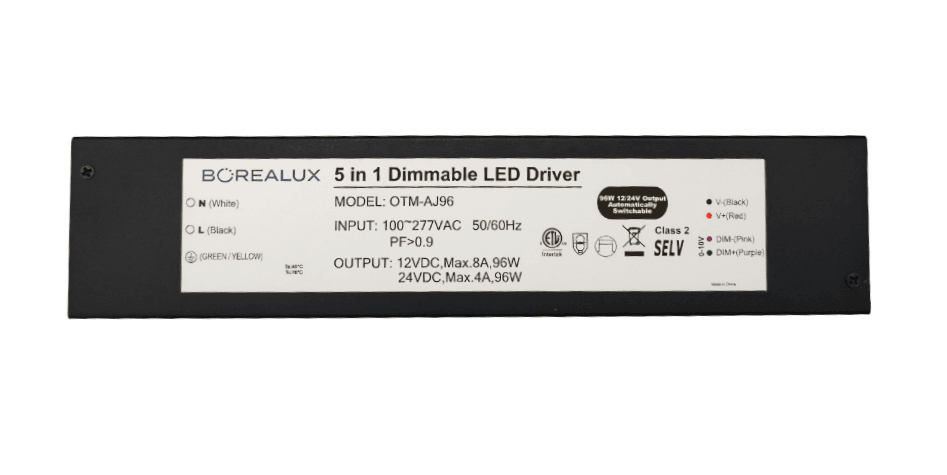

LED Power Supply 96 W — Auto-Switching Junction Box 12/24 V Compact IP54 LED driver with auto-switching output between 12 V and 24 V, compatible with a wide range of architectural LED strip lights. Its 5-in-1 dimming compatibility supports Triac, 0-10V, 1-10V, 10V PWM, and potentiometer methods — all flicker-free. Built for demanding installations: universal input range 100–277 V AC, up to 89% efficiency, and operating temperatures from -40°C to +70°C. Built-in protection against short circuits, overload, and overheating. ✔ 96 W · IP54 · Class 2 · UL · CE · RoHS · 5-Year Warranty

Specifications

• Dimmable, TRIAC,0-10V,1-10V,PWM,MLV
• Class 2
• 12V/24V
• 96W
• IP54 protection
• Surge protection
